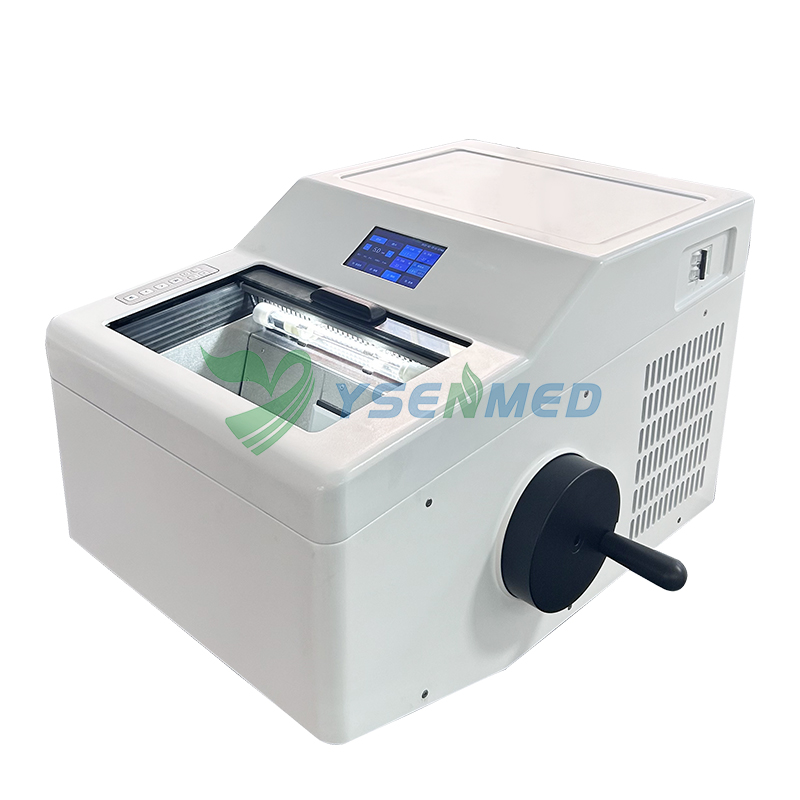

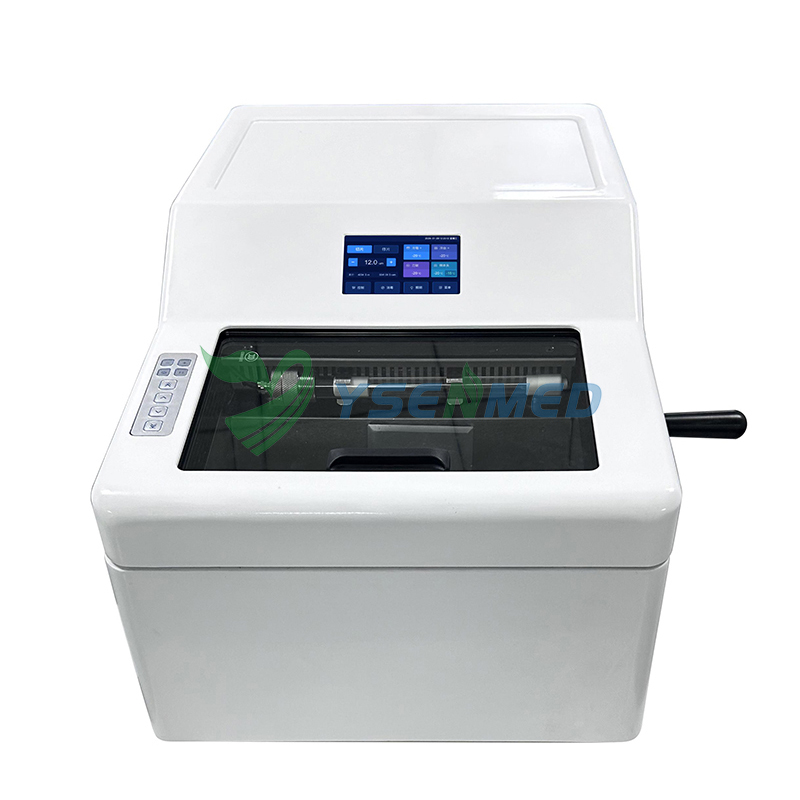

Настольный полуавтоматический криостат-микротом YSPD-HS2040 для патологоанатомических лабораторий

Предмет №: YSPD-HS2040
Оптимизируйте рабочие процессы в лаборатории с помощью настольного криостата YSPD-HS2040. Благодаря функции быстрого многоточечного охлаждения, интуитивно понятному сенсорному управлению и точной системе моторизованной подачи образца, этот прибор обеспечи
ОПИСАНИЕ

Настольный полуавтоматический криостат-микротом YSPD-HS2040 для патологоанатомических лабораторий


Features:
1. Ingenious machine body, portable: Ultra-small size design, easy to carry and save space.
2. Light weight, easy to move: Optimized weight ratio, easy handling, no burden.
3. Multi-point refrigeration, excellent quality: Integrated all-round refrigeration system, quickly reach sectioning temperature.

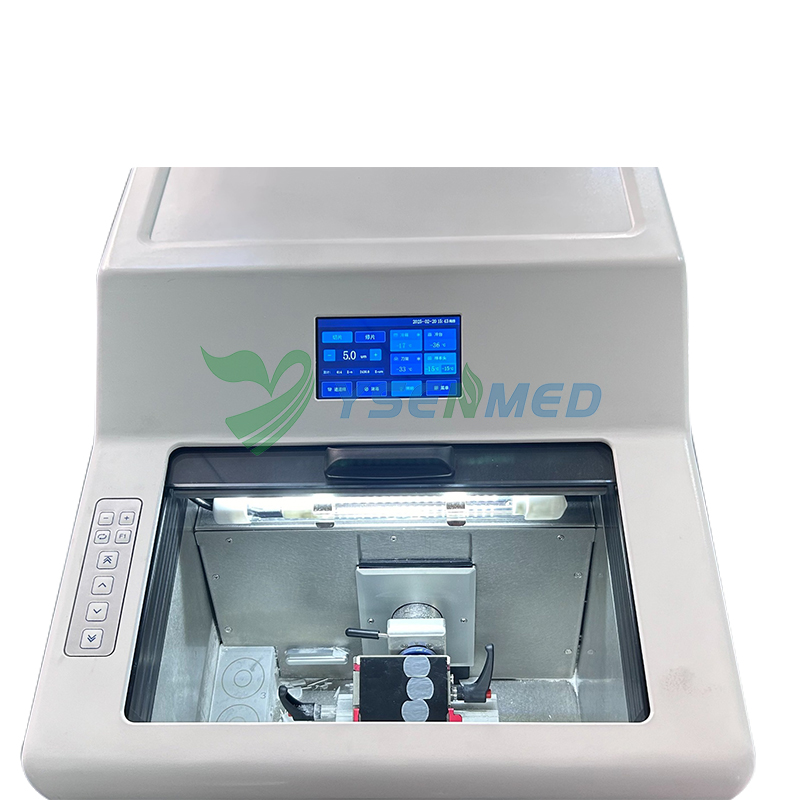

4. Compact cryochamber, easy operation: Small chamber design, maximized space utilization, convenient to use.
5. Intelligent memory, simplify the process: The specimen head is equipped with intelligent location memory function, one click to return to the preset position.
6. Anti-collision protection, safety upgrade: integrated automatic anti-collision knife mechanism to protect the safety of equipment.
7. Precise specimen feeding, stable sectioning: High-precision specimen feeding system to achieve micronized accurate control.
8. Color touch, easy to operate: High-definition color LCD touch screen, intuitive display of functions and parameters.
9. Induction lighting, clear details: Intelligent induction lighting, adjustable brightness at will, which helps accurate operation.

Main Technical Data:
  1. Sectioning thickness range: 0.5-100μm,Default: 6µm
  2. Section Thickness Setting: 0.5-5 µm,Step 0.5µm
                          5-20 µm,Step 1µm
                          20-60µm,Step 5µm
                          60~100µm,Step 10µm
  1. Trim Thickness range: 1-600μm,Default:20µm
  2. Trim Thickness Setting: 1-10μm,Default:1µm
                        10-20μm,Step:2µm
                        20-50µm,Step 5µm
                        50-100µm,Step 10µm
                        100-600µm,Step 50µm
  1. Feeding Drive Mode: Driven by stepper a motor, ensuring precise and stable sample drive.
  2. Specimen Head Memory: Memorize the specimen head feeding position, after replacing with a new tissue specimen, it can directly reach to the remembered position with one click.
  3. Specimen Head Retraction: Support retraction within the range of 0-250 µm (0µm is off). The default value is 20µm.
  4. Specimen Head Coarse Feeding Speed: 900-2000µm/s,Default:1800µm/s
  5. Specimen Head Fine Feeding Speed: 100-900µm/s,Default:300µm/s
  6. Horizontal Stroke of Specimen Head: 25±1mm
  7. Vertical Stroke of Specimen Head: 60±1mm
  8. Specimen Positioning: Specimen holder 360°rotation, zero position indicator
  9. Specimen Head Return: Press the “Fast Backward” key to quickly return, and press the “Fast Backward” key again to stop the return, the return speed is 2000µm/s
  10. Handwheel Lock: Locked at 6 o’clock, locked at 12 o’clock
  11. Blade Holder: Compatible with high profile and low profile blade, horizontal movement 48mm, Angle adjustment: 0 -15°

Refrigeration Parameters:
1.Refrigeration Positions: Multi-point refrigeration, supporting 4 positions refrigeration including cryo chamber, specimen head, knife holder, and freezing shelves
2.Temperature Display: Temperatures of cryo chamber, specimen head, knife holder, and freezing shelves
3.Temperature Setting: Specimen head: -5℃~-50℃±5℃,default: -15℃
4. Cooling Method: Single compressor cooling.
5.Number of Freezing Stations: 3

Auxiliary Parameters:
1. Disinfection Function: UV disinfection, manual disinfection, selectable 30min, 60min, and 180min.
2. Illumination: Automatic window illumination with sensor, supports manual on/off, adjustable brightness.
3. Data Accumulation: Accumulates cutting/trimming thickness and number of cuts, resettable.
4. Automatic Standby: Standby time range 1-60min, default 5min.
5. Anti-collision Blade Function: Supports anti-collision blade position marking; can be remarked after moving the blade holder.
6. Audible Alarm: Audible alert when specimen head arrives at front and rear positions.
7. Screen: 5-inch color LCD touchscreen; all functions and parameters can be operated and set via the touchscreen for convenient operation.
8. Window: Single-layer non-heated glass.
9. Cold Box Volume: 14.5L (Length 335mm, Width 180mm, Depth 240mm)
10. Button Panel: Physical button panel on the left side of the device, supporting common functions such as fast forward, fast rewind, slow forward, slow rewind, thickness adjustment, and trimming/slicing conversion.
11. Power: 370W
12. Dimension: Width * Depth * Height: 590mm (Handle Included) * 715mm * 445mm
13. Net Weight: 70kg

Accessory Specifications
1. Blade guard: High-visibility red finish.
2. Blade ejector: Integrated into the blade guard; blade ejection via push rod.
3. Specimen holder: Adopts flat structure. Larger contact area with cooling stage and specimen head for improved sample freezing efficiency. Standard equipped with φ35mm size only.

Standard Configuration List
1. Cryostat   1 unit
2. Power cord (2m)   1 pc
3. Fuse (10A)   4 pcs
4. Sample tray (with rubber ring 32*28*3)   5 pcs
5. Handwheel (with plug cover, including positioning pin)   1 pc
6 Fixed heat absorber (cold hammer)   1 pc
7. Wheel mounting screw (M5*20)    1 pc
8. Handle   1 pc
9. Waste liquid tray   1 pc
10. E-type knife holder   1 pc
11. Waste box   1 pc
12. Writing brush    1 pc
13. Tweezers   1 pc
14. Embedding medium (OCT)    1 pc
15. Blade   1 pc
16. Small screwdriver (3*50mm)   1 pc
17. Hexagon wrench   1 pc
18. Instruction manual   1 pc

Package Info:
Each instrument packed Wooden Case
Packing Size: 887*830*645mm
Gross Weight: 108kg
